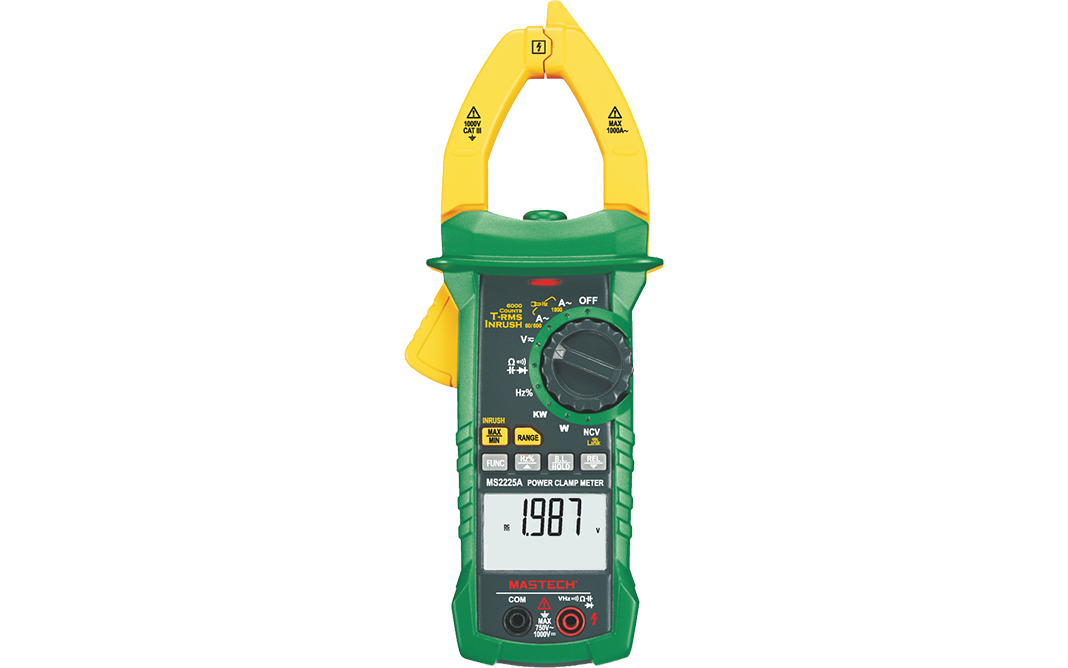

Features
● Display 6000 counts
● Jaw Opening Ф40mm/1.6"
● Auto & Manual Ranging
● Auto Power Off
● True root mean suqare
● Diode Open voltage 3.2V
● Continuity Buzzer <50Ω
● Inrush Current measurement
● MAX/MIN
● Data Hold
● Relative measurement
● Display Backlight
● Worklight
● Low Battery Display
● Non-Contact Voltage Detector
● Wireless APP Connection
Features
● Display 6000 counts
● Jaw Opening Ф40mm/1.6"
● Auto & Manual Ranging
● Auto Power Off
● True root mean suqare
● Diode Open voltage 3.2V
● Continuity Buzzer <50Ω
● Inrush Current measurement
● MAX/MIN
● Data Hold
● Relative measurement
● Display Backlight
● Worklight
● Low Battery Display
● Non-Contact Voltage Detector
● Wireless APP Connection
|
Specifications |
Range |
Resolution |
Accuracy |
|
DC Voltage |
6V/60V/600V |
0.001V/0.01V/0.1V |
±(0.5%+5) |
|
1000V |
1V |
±(0.8%+4) |
|
|
AC Voltage |
6V/60V/600V |
0.001V/0.01V/0.1V |
±(0.6%+5) |
|
750V |
1V |
±(0.8%+4) |
|
|
AC Current |
60A/600A/1000A |
0.01A/0.1A/1A |
±(2.0%+8) |
|
Inrush Current |
60A/600A/1000A |
0.01A/0.1A/1A |
±(5.0%+60) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ |
0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ |
±(0.8%+3) |
|
6MΩ/60MΩ |
0.001MΩ/0.01MΩ |
±(2.0%+5) |
|
|
Capacitance |
9.999nF/99.99nF/999.9nF/9.999µF/ |
0.001nF/0.01nF/0.1nF/0.001µF |
±(3.0%+5) |
|
99.99µF/999.9µF/9.999mF/99.99mF |
0.01µF/0.1µF/0.001mF/0.01mF |
±(3.0%+5) |
|
|
Active Power |
3.0W/100.0W/4000W |
0.01W/0.1W/1W |
±(3.0%+5) |
|
10.0kW/100.0kW/750kW |
0.01kW/0.1kW/1kW |
±(3.0%+5) |
|
|
Apparent Power |
3.0VA/100.0VA/4000VA |
0.01VA/0.1VA/1VA |
±(3.0%+5) |
|
10.0kVA/100.0kVA/750kVA |
0.01kVA/0.1kVA/1kVA |
±(3.0%+5) |
|
|
Reactive Power |
3.0VAr/100.0VAr/4000VAr |
0.01VAr/0.1VAr/1VAr |
±(3.0%+5) |
|
10.0kVAr/100.0kVAr/750kVAr |
0.01kVAr/0.1kVAr/1kVAr |
±(3.0%+5) |
|
|
Power Factor |
0.3~1 |
0.001 |
±(2.0%+5) |
|
Frequency (V) |
99.99Hz/999.9Hz/9.999kHz |
0.01Hz/0.1Hz/0.001kHZ |
±(1.5%+5) |
|
>10kHz |
0.01kHz |
±(1.5%+5) |
|
|
Frequency (A) |
99.99Hz/999.9Hz |
0.01Hz/0.1Hz |
±(1.5%+5) |
|
>1kHz |
0.001kHz |
±(1.5%+5) |
|
|
Frequency (W) |
40~1kHz |
0.1Hz |
±(0.5%+1) |
|
Frequency (KW) |
40~1kHz |
0.1Hz |
±(0.5%+1) |
|
Frequency (Hz/Duty) |
9.999Hz/99.99Hz/999.9Hz/9.999kHz |
0.001Hz/0.01Hz/0.1Hz/0.001kHz |
±(0.3%+5) |
|
99.99kHz/999.9kHz/9.999MHz/ |
0.01kHz/0.1kHz/0.001MHz |
±(0.3%+5) |
|
|
Duty Cycle |
0.1%-99.9% |
0.10% |
±(3.0%+3) |
|
Harmonic |
Harmonic Number:1 |
|
±(3.0%+10) |
|
Measurement |
Harmonic Number:2~6 |
|
±(3.5%+10) |
|
45Hz~65Hz |
Harmonic Number:7~8 |
|
±(4.5%+10) |
|
(fundamental) |
Harmonic Number:9~10 |
|
±(5.0%+10) |
|
|
Harmonic Number:11~15 |
|
±(7.0%+10) |
|
|
Harmonic Number:16~20 |
|
±(10%+10) |
|
● Power Supply : 1x9V 6F22 Battery ● Product Size : 250mmx98mmx53mm / 9.84''x3.78''x2.09'' ● Product Weight : 450g/0.99lb ● Certifiacte : CE / ETL / RoHS ● Safety Rating : CAT III 1000V |
|
● Test Leads ● Alligator clip (option) ● Carry bag ● Battery and User's manual |
